AQ-13 diHCl is an aminoquinoline antimalarial agent that has a strong inhibitory activity against the drug-resistant strain Plasmodium falciparum.

Physicochemical Properties

Molecular Formula	C16H24CL3N3
Molecular Weight	364.740860939026
Exact Mass	363.104
CAS #	169815-40-1
PubChem CID	9820475
Appearance	Light yellow to yellow solid powder
LogP	5.709
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	7
Heavy Atom Count	22
Complexity	270
Defined Atom Stereocenter Count	0
InChi Key	ZNHBPWZRWNFJPN-UHFFFAOYSA-N
InChi Code	InChI=1S/C16H22ClN3.2ClH/c1-3-20(4-2)11-5-9-18-15-8-10-19-16-12-13(17)6-7-14(15)16;;/h6-8,10,12H,3-5,9,11H2,1-2H3,(H,18,19);2*1H

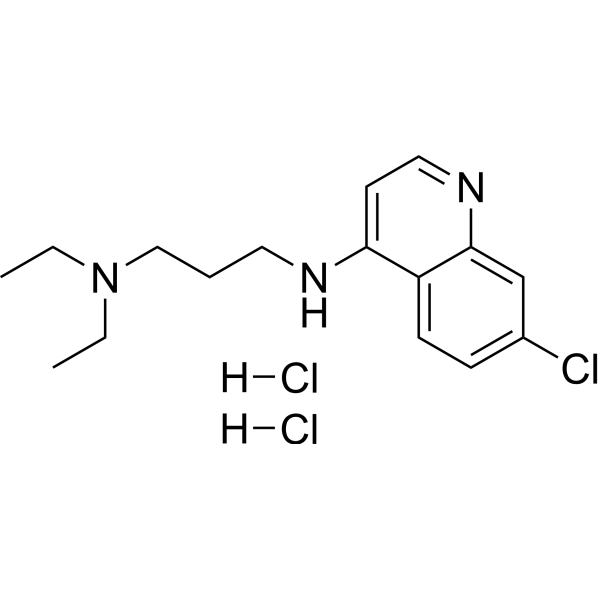

Chemical Name	N-(7-chloroquinolin-4-yl)-N',N'-diethylpropane-1,3-diamine;dihydrochloride
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment, avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vivo	A small decrease in the PCE/RBC ratio was seen in male and female rats treated with CQ and in female rats treated with AQ-13 alone; however, these changes were not statistically significant [1].
References	[1]. Genetic toxicology testing of the antimalarial drugs chloroquine and a new analog, AQ-13. Environ Mol Mutagen. 2001;38(1):69-79.
Additional Infomation	AQ-13 is an 4-aminoquinoline analog being investigated for the treatment of malaria.

Solubility Data

Solubility (In Vitro)

H2O : ~100 mg/mL (~274.17 mM) DMSO : ~80 mg/mL (~219.33 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.67 mg/mL (7.32 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 26.7 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.67 mg/mL (7.32 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 26.7 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 3: 2.67 mg/mL (7.32 mM) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 26.7 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly. Solubility in Formulation 4: 100 mg/mL (274.17 mM) in PBS (add these co-solvents sequentially from left to right, and one by one), clear solution; with ultrasonication.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.7417 mL	13.7084 mL	27.4168 mL
	5 mM	0.5483 mL	2.7417 mL	5.4834 mL
	10 mM	0.2742 mL	1.3708 mL	2.7417 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
