AP1867-2-(carboxymethoxy) is used in synthesis of PROTACS. It is an AP1867 (a synthetic FKBP12F36V-directed ligand) based moiety which binds to CRBN ligand via a linker to form dTAG molecules.

Physicochemical Properties

Molecular Formula	C38H47NO11
Molecular Weight	693.779892206192
Exact Mass	693.314
CAS #	2230613-03-1
PubChem CID	133080821
Appearance	White to off-white solid powder
LogP	6.3
Hydrogen Bond Donor Count	1
Hydrogen Bond Acceptor Count	11
Rotatable Bond Count	18
Heavy Atom Count	50
Complexity	1050
Defined Atom Stereocenter Count	3
SMILES	O([C@H](C1C=CC=CC=1OCC(=O)O)CCC1C=CC(=C(C=1)OC)OC)C([C@H]1CCCCN1C([C@@H](C1C=C(C(=C(C=1)OC)OC)OC)CC)=O)=O
InChi Key	UYXSZUBFOQLRNQ-BTIIJPOSSA-N
InChi Code	InChI=1S/C38H47NO11/c1-7-26(25-21-33(46-4)36(48-6)34(22-25)47-5)37(42)39-19-11-10-13-28(39)38(43)50-30(27-12-8-9-14-29(27)49-23-35(40)41)17-15-24-16-18-31(44-2)32(20-24)45-3/h8-9,12,14,16,18,20-22,26,28,30H,7,10-11,13,15,17,19,23H2,1-6H3,(H,40,41)/t26-,28-,30+/m0/s1

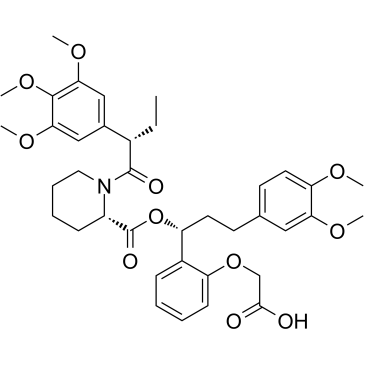

Chemical Name	2-[2-[(1R)-3-(3,4-dimethoxyphenyl)-1-[(2S)-1-[(2S)-2-(3,4,5-trimethoxyphenyl)butanoyl]piperidine-2-carbonyl]oxypropyl]phenoxy]acetic acid
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: This product requires protection from light (avoid light exposure) during transportation and storage.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro	It is the dTAG molecule that binds CRBN and FKBP12F36V[1].
References	[1]. The dTAG system for immediate and target-specific protein degradation. Nat Chem Biol. 2018 May;14(5):431-441.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~144.14 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 5.5 mg/mL (7.93 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 55.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 5.5 mg/mL (7.93 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 55.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.4414 mL	7.2069 mL	14.4138 mL
	5 mM	0.2883 mL	1.4414 mL	2.8828 mL
	10 mM	0.1441 mL	0.7207 mL	1.4414 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
