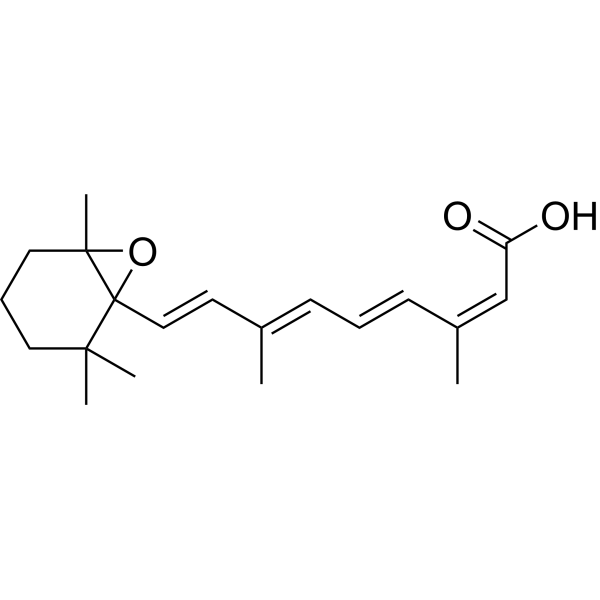

 Chemical Structure.png)
Physicochemical Properties
| Molecular Formula | C20H28O3 |
| Molecular Weight | 316.43 |
| Exact Mass | 316.203 |
| CAS # | 81444-57-7 |
| PubChem CID | 71316381 |
| Appearance | Typically exists as solid at room temperature |
| Melting Point | 176-178°C |
| LogP | 5 |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 3 |
| Rotatable Bond Count | 5 |
| Heavy Atom Count | 23 |
| Complexity | 606 |
| Defined Atom Stereocenter Count | 0 |
| SMILES | C(/C12C(C)(C)CCCC1(O2)C)=C\C(\C)=C\C=C\C(\C)=C/C(=O)O |
| InChi Key | KEEHJLBAOLGBJZ-NJZIYGCESA-N |
| InChi Code | InChI=1S/C20H28O3/c1-15(8-6-9-16(2)14-17(21)22)10-13-20-18(3,4)11-7-12-19(20,5)23-20/h6,8-10,13-14H,7,11-12H2,1-5H3,(H,21,22)/b9-6+,13-10+,15-8+,16-14- |
| Chemical Name | (2Z,4E,6E,8E)-3,7-dimethyl-9-(2,2,6-trimethyl-7-oxabicyclo[4.1.0]heptan-1-yl)nona-2,4,6,8-tetraenoic acid |
| Synonyms | DTXSID101269399; 13-cis-5,6-Epoxy-5,6-dihydroretinoic Acid; DTXCID401700021; 5,6-Epoxy-13-cis Retinoic Acid; 81444-57-7; (2Z,4E,6E,8E)-3,7-dimethyl-9-(2,2,6-trimethyl-7-oxabicyclo[4.1.0]heptan-1-yl)nona-2,4,6,8-tetraenoic acid; 5,6-Epoxy-13-cis-retinoic acid; (13Z)-5,6-Epoxy-5,6-dihydroretinoic acid; |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | 13-cis retinoic acid metabolite |
| ln Vitro | Reverse phase high pressure liquid chromatography was employed to separate the major products resulting from the hydroperoxide-dependent cooxidation of 13-cis-retinoic acid by microsomal and purified prostaglandin H (PGH) synthase. Several major oxygenated metabolites including 4-hydroxy-, 5,6-epoxy-, and 5,8-oxy-13-cis-retinoic acid were unambiguously identified on the basis of cochromatography with authentic standards, uv spectra, and mass spectral analysis. Identical product profiles were generated regardless of the type of oxidizing substrate employed, and heat-denatured microsomes or enzyme did not support oxidation. In addition, several geometric isomers including all trans-retinoic acid were identified. Isomerization to all trans-retinoic acid in microsomes occurred in the absence of exogenous hydroperoxide, was insensitive to inhibition by antioxidant, and was eliminated when heat-denatured preparations were substituted for intact microsomes. Conversely, isomerization to at least one other isomer required the addition of hydroperoxide and was sensitive to antioxidant inhibition. Addition of antioxidant to microsomal incubation mixtures inhibited the hydroperoxide-dependent generation of 5,6-epoxy- and 5,8-oxy-13-cis-retinoic acid and other oxygenated metabolites but stimulated the formation of 4-hydroxy-13-cis-retinoic acid. Under standard conditions, 77% of the original retinoid was metabolized resulting in products containing 1.25 oxygen atoms/oxygenated metabolite, and two dioxygen molecules were consumed per hydroperoxide reduced. Purified PGH synthase also supported O2 uptake during cooxidation of 13-cis-retinoic acid by H2O2 or 5-phenyl-4-pentenyl-1-hydroperoxide, and the initial velocities of O2 uptake were directly proportional to enzyme concentration. 13-cis-Retinoic acid effectively inhibited peroxidase-dependent cooxidation of guaiacol indicating a direct interaction of retinoid with peroxidase iron-oxo intermediates, and EPR spin trapping studies demonstrated the formation of retinoid-derived free radical intermediates. Incubating H2O2 with microsomal PGH synthase resulted in the initiation of lipid peroxidation, detected via measurement of malondialdehyde generation, that was inhibited by retinoid and suggests some limited involvement of lipid peroxidation in retinoid oxidation. Incubation of 13-cis-retinoic acid with hematin and 15-hydroperoxy-5,8,11,13-eicosatetraenoic acid in the presence of detergent, a system that generates high yields of peroxyl radicals, resulted in high yields of 5,6-epoxide; 4-hydroxy-13-cis-retinoic acid was not detected [1]. |
| References | [1]. Hydroperoxide-dependent cooxidation of 13-cis-retinoic acid by prostaglandin H synthase. J Biol Chem. 1987 Oct 15;262(29):14119-33. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 3.1603 mL | 15.8013 mL | 31.6026 mL | |
| 5 mM | 0.6321 mL | 3.1603 mL | 6.3205 mL | |
| 10 mM | 0.3160 mL | 1.5801 mL | 3.1603 mL |
