3-(N-Maleimidopropionyl)biocytin (MPB) is a membrane-impermeant biocytin that can be used for mitochondrial structural studies. MPB is widely used for cysteine-specific covalent modification of proteins resulting in the coupling of a biotin moiety to the polypeptide chain. Femtomole amounts of available thiol groups can be detected. Due to bulkiness of the biotin moiety and the hydrophilic nature of the linker between maleimide and biotin, MPB is a poor membrane-permeant agent. Topology and orientation of several membrane proteins have been determined by MPB labelling. No reaction of biotin maleimides with proteins lacking cysteine has been observed. In the present study we have exploited properties of the membrane impermeable cysteine-selective compound MPB to probe the topology of Tim44 in intact mitochondria.

Physicochemical Properties

Molecular Formula	C23H33N5O7S
Molecular Weight	523.60
Exact Mass	523.21
CAS #	102849-12-7
PubChem CID	127195
Appearance	White to off-white solid powder
Density	1.3±0.1 g/cm3
Boiling Point	962.5±65.0 °C at 760 mmHg
Flash Point	535.9±34.3 °C
Vapour Pressure	0.0±0.6 mmHg at 25°C
Index of Refraction	1.569
LogP	-1.5
Hydrogen Bond Donor Count	5
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	15
Heavy Atom Count	36
Complexity	893
Defined Atom Stereocenter Count	4
SMILES	C1[C@H]2[C@@H]([C@@H](S1)CCCCC(=O)NCCCC[C@@H](C(=O)O)NC(=O)CCN3C(=O)C=CC3=O)NC(=O)N2
InChi Key	KWNGAZCDAJSVLC-OSAWLIQMSA-N
InChi Code	InChI=1S/C23H33N5O7S/c29-17(7-2-1-6-16-21-15(13-36-16)26-23(35)27-21)24-11-4-3-5-14(22(33)34)25-18(30)10-12-28-19(31)8-9-20(28)32/h8-9,14-16,21H,1-7,10-13H2,(H,24,29)(H,25,30)(H,33,34)(H2,26,27,35)/t14-,15-,16-,21-/m0/s1

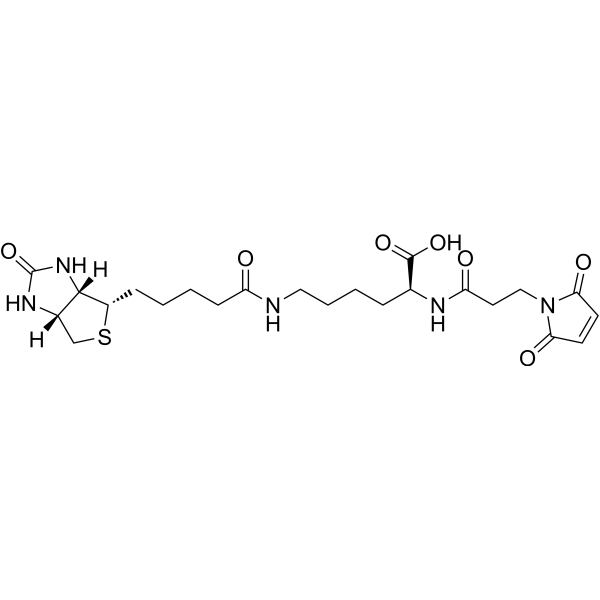

Chemical Name	(2S)-6-[5-[(3aS,4S,6aR)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoylamino]-2-[3-(2,5-dioxopyrrol-1-yl)propanoylamino]hexanoic acid
Synonyms	3-(N-Maleimidopropionyl)biocytin; 102849-12-7; N-(3-Maleimidopropionyl)biocytin; 3-MPB; 3-(N-Maleimidylpropionyl)biocytin; (2S)-6-[5-[(3aS,4S,6aR)-2-oxo-1,3,3a,4,6,6a-hexahydrothieno[3,4-d]imidazol-4-yl]pentanoylamino]-2-[3-(2,5-dioxopyrrol-1-yl)propanoylamino]hexanoic acid; Nalpha-(3-Maleimidylpropionyl)Biocytin; 3-(N-Maleimido-propionyl)biocytin;
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

Targets	Mitochondrial metabolism
ln Vitro	Tim44 is an essential component of the translocase of the inner mitochondrial membrane (TIM) complex that mediates transport of nuclear encoded mitochondrial precursors across the inner membrane. Here, we have investigated the topology of Tim44 by probing mitochondria with membrane impermeable 3-(N-maleimidopropionyl)biocytin (MPB) followed by the specific immunoprecipitation of modified proteins. Our data indicate that a single cysteine residue, Cys-369, located in the C-terminal domain of the yeast Tim44 is exposed to the mitochondrial intermembrane space [1].
Enzyme Assay	MPB/3-(N-maleimidopropionyl)biocytin labelling. [1] Mitochondria protein (800 microgram) were resuspended in 1 ml of buffer containing 0.6 M sorbitol, 20 mM Hepes–KOH, pH 7.4 for yeast mitochondria and 0.23 M mannitol, 70 mM sucrose, 20 mM Hepes–KOH, pH 7.2 for rat liver mitochondria. MPB (0.5 mM) was added and the mitochondrial suspension was divided into two aliquots. One sample was incubated with MPB/3-(N-maleimidopropionyl)biocytin for 30 min, 4 °C. The reaction was stopped by incubation with 2 mM DTT for 10 min, 4 °C. Mitochondria were solubilised in 0.5% Triton X-100 and centrifuged at 14 000 rpm, 10 min. Supernatants were subjected to immunoprecipitation for 3–4 h, 4 °C using antisera against mitochondrial proteins followed by incubation with ProteinA-Sepharose. Pellets were washed four times with TBS-Tween buffer, loaded with Laemmli solubilisation buffer and boiled 5 min. The second aliquot of the mitochondrial suspension (order 2) was treated as the previous sample except that mitochondria were solubilised with Triton X-100 at the beginning of the MPB treatment.
References	[1].Probing the membrane topology of a subunit of the mitochondrial protein translocase, Tim44, with biotin maleimide. Biochem Biophys Res Commun. 2002 Apr 26;293(1):321-6.
Additional Infomation	3-(n-maleimidopropionyl)biocytin is a peptide. Fig. 1 shows the results of labelling yeast mitochondria with MPB/3-(N-maleimidopropionyl)biocytin in the absence and in the presence of Triton X-100. After labelling, proteins were subjected to immunoprecipitation with respective antibodies (left column) followed by Western blotting using avidin-peroxidase (right column). Proteins of the outer mitochondrial membrane, Tom40 and Tom70, were readily labelled with MPB in intact mitochondria. The degree of labelling of Tom70 was greater upon solubilisation of mitochondrial membranes with detergent. It has to be mentioned that amounts of immunoprecipitated proteins were equal in both samples as verified by staining of blots with respective antibodies (not shown). Imp1 was labelled in intact as well as in solubilised mitochondria which was in agreement with topology of this protein described previously. Tim44 was another inner membrane protein that could be labelled with MPB in intact mitochondria. The degree of Tim44 labelling by MPB/3-(N-maleimidopropionyl)biocytin was similar in intact and solubilised mitochondria suggesting that the only present Cys-369 was free and exposed to the intermembrane space. Two other inner membrane proteins, Yta10 and Yta12, as well as matrix located α-MPP were biotinylated only upon solubilisation of mitochondria with Triton X-100 suggesting that the inner membrane was indeed impermeable for MPB. It has to be stressed that at high concentrations (⩾ 200 uM) MPB was reported to penetrate plasma membrane of mammalian cells [18]. In our experiments with intact mitochondria we did not observe any significant modification (⩽5%) of cysteine residues located in the matrix proteins even at MPB concentration of 500 uM. At lower concentrations of MPB efficiency of protein modification decreased but the pattern of protein labelling in different intra-mitochondrial compartments was similar. Rat Tim44 contains three cysteine residues and one of these residues is located close to the Tim44 C-terminus. We also probed the Tim44 topology in isolated rat liver mitochondria. Under the conditions used rat Tim44 could not be modified with MPB/3-(N-maleimidopropionyl)biocytin even in solubilised mitochondria indicating that all cysteines were inaccessible to MPB. Rat mHsp70 was strongly labelled with MPB after solubilisation of the mitochondrial membranes, moreover, labelled mHsp70 was coimmunoprecipitated with anti-Tim44 antibodies (data not shown). Previously, we have observed that the in vitro synthesised precursor of Nicotiana plumbaginifolia ATP-synthase F1β subunit could be modified with MPB only when the precursor was unfolded on the mitochondrial surface. Cysteines hidden in the folded protein were not available for modification due to the hydrophilic nature and bulkiness of MPB. This might be the case for rat Tim44. Alternatively, cysteine groups can form inter or intra-molecular disulfide bridges also preventing their modification. Sequence alignment of yeast and rat Tim44 showed no conservation in the position of cysteines at their C-terminal domain (Fig. 2A). Yeast mitochondrial protein import shows no sensitivity to treatment with sulfhydryl-specific reagents in contrast to plant and mammalian mitochondrial protein import systems. Taken together, these data suggest different characteristics of cysteine residues in Tim44 from yeast and other species. In conclusion, we have shown that in the intact yeast mitochondria a single cysteine, Cys-369 located in the C-terminal domain of the Tim44 was labelled with membrane-impermeable maleimide, MPB/3-(N-maleimidopropionyl)biocytin. The C-terminal portion of Tim44 from a variety of species has been predicted to have positionally conserved stretch of hydrophobic amino acids. In yeast Tim44, this segment contains Cys-369 accessible from the outside of the inner membrane. Taken together these results suggest that the C-terminal part of Tim44 is exposed to the mitochondrial intermembrane space.[1]
