Physicochemical Properties
| Molecular Formula | C10H8NO6S2-.K+.H2O |
| Molecular Weight | 359.4172 |
| Exact Mass | 340.943 |
| CAS # | 842-15-9 |
| PubChem CID | 23677982 |
| Appearance | Typically exists as solid at room temperature |
| Density | 0.881 g/mL at 25 °C(lit.) |
| Boiling Point | 159-161 °C(lit.) |
| Melting Point | −69 °C(lit.) |
| Flash Point | 107 °F |
| Index of Refraction | n20/D 1.425(lit.) |
| LogP | 3.315 |
| Hydrogen Bond Donor Count | 2 |
| Hydrogen Bond Acceptor Count | 7 |
| Rotatable Bond Count | 2 |
| Heavy Atom Count | 20 |
| Complexity | 537 |
| Defined Atom Stereocenter Count | 0 |

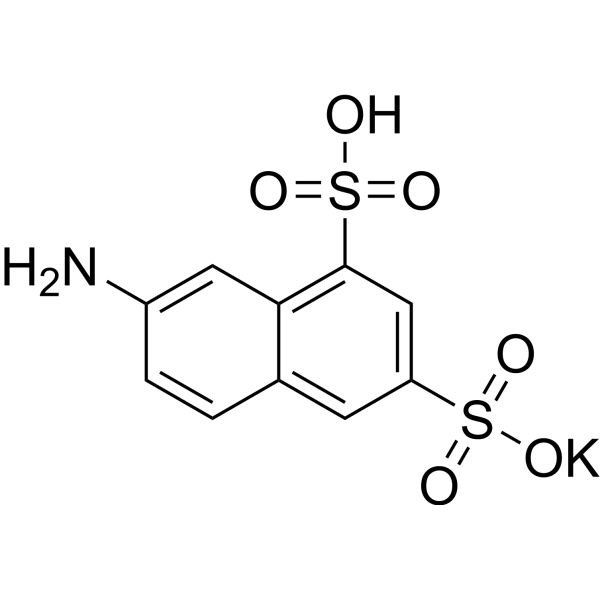

| SMILES | [K].O=S(C1C=C(S(O)(=O)=O)C2C(=CC=C(C=2)N)C=1)(O)=O |
| InChi Key | GOPRYBNRWIBTIH-UHFFFAOYSA-M |
| InChi Code | InChI=1S/C10H9NO6S2.K/c11-7-2-1-6-3-8(18(12,13)14)5-10(9(6)4-7)19(15,16)17;/h1-5H,11H2,(H,12,13,14)(H,15,16,17);/q;+1/p-1 |
| Chemical Name | potassium;7-amino-3-sulfonaphthalene-1-sulfonate |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| ln Vitro | At a concentration of 1369 μM, compound 20 (potassium 2-naphthylamine-6,8-disulfonate) can suppress HIV-1 and HIV-2 by 11% and 13.6%, respectively, in human immunodeficiency virus [1]. Direct examination of poly(ethanol pyrophosphate)-linked oligosaccharides in cell cultures and tissues is made possible by potassium 2-naphthylamine-6,8-disulfonate (ANDS) [3]. Advice (This is our suggested protocol, which should be adjusted to suit your particular circumstances as it simply offers guidance). For oligosaccharide labeling [3]: 1. Make 0.15 M ANDS using acetic acid at 15% (v/v). 2. Make a sodium cyanoborohydride (1M) solution in dimethyl sulfoxide (DMSO). 3. To the sample, add 5 μL of ANDS reagent (or 1 μL if the sample contains fewer than 200 pmol). 4. To the sample, add 5 μL of sodium cyanoborohydride solution (or 1 μL if the sample contains less than 200 pmol). 5. The reaction was mixed, quickly centrifuged, and then dried for eighteen hours at 37°C. |
| References |
[1]. Potential anti-AIDS naphthalenesulfonic acid derivatives. Synthesis and inhibition of HIV-1 induced cytopathogenesis and HIV-1 and HIV-2 reverse transcriptase activities. J Med Chem. 1992 Dec 25;35(26):4846-53. [2]. A new method for sequencing linear oligosaccharides on gels using charged, fluorescent conjugates. Carbohydr Res. 1991 Jul 18;214(1):155-68. [3]. Fluorophore-assisted carbohydrate electrophoresis: a sensitive and accurate method for the direct analysis of dolichol pyrophosphate-linked oligosaccharides in cell cultures and tissues. Methods. 2005 Apr;35(4):323-7. [4]. Preparation method of 2-naphthylamine 6,8 disulfonic acid. CN102295585A. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 2.7823 mL | 13.9113 mL | 27.8226 mL | |
| 5 mM | 0.5565 mL | 2.7823 mL | 5.5645 mL | |
| 10 mM | 0.2782 mL | 1.3911 mL | 2.7823 mL |
