(-)-SHIN1 ((-)-RZ-2994) is the inactive (+) enantiomer of SHIN1.

Physicochemical Properties

Molecular Formula	C24H24N4O2
Molecular Weight	400.4730
Exact Mass	400.189
CAS #	2444764-09-2
Related CAS #	SHIN1;2146095-85-2;(+)-SHIN1;2443966-90-1
PubChem CID	134337375
Appearance	White to off-white solid powder
LogP	4.4
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	5
Rotatable Bond Count	4
Heavy Atom Count	30
Complexity	707
Defined Atom Stereocenter Count	1
SMILES	O1C(=C(C#N)[C@@](C2=C([H])C(C([H])([H])O[H])=C([H])C(C3C([H])=C([H])C([H])=C([H])C=3[H])=C2[H])(C2=C(C([H])([H])[H])N([H])N=C12)C([H])(C([H])([H])[H])C([H])([H])[H])N([H])[H]
InChi Key	VVVOFJZXKJKHTD-XMMPIXPASA-N
InChi Code	InChI=1S/C24H24N4O2/c1-14(2)24(20(12-25)22(26)30-23-21(24)15(3)27-28-23)19-10-16(13-29)9-18(11-19)17-7-5-4-6-8-17/h4-11,14,29H,13,26H2,1-3H3,(H,27,28)/t24-/m1/s1

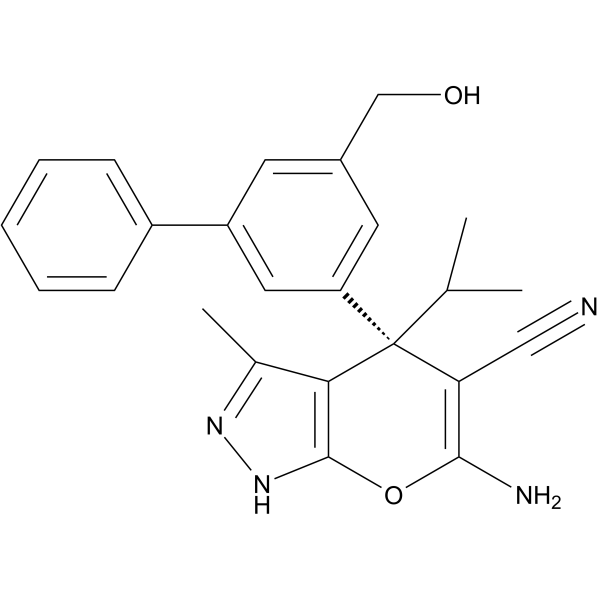

Chemical Name	(4R)-6-amino-4-[3-(hydroxymethyl)-5-phenylphenyl]-3-methyl-4-propan-2-yl-2H-pyrano[2,3-c]pyrazole-5-carbonitrile
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month Note: Please store this product in a sealed and protected environment (e.g. under nitrogen), avoid exposure to moisture.
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Human SHMT inhibitors reveal defective glycine import as a targetable metabolic vulnerability of diffuse large B-cell lymphoma. Proc Natl Acad Sci U S A. 2017 Oct 24;114(43):11404-11409.

Solubility Data

Solubility (In Vitro)

DMSO: ≥ 100 mg/mL (249.71 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (6.24 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (6.24 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (6.24 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	2.4971 mL	12.4853 mL	24.9707 mL
	5 mM	0.4994 mL	2.4971 mL	4.9941 mL
	10 mM	0.2497 mL	1.2485 mL	2.4971 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
