(S,R,S)-AHPC-PEG2-C4-Cl (VH032-PEG2-C4-Cl) is a composite molecule connected by E3 ligand to 13 atoms, and the linker of the linker is a Halogen group. (S,R,S)-AHPC-PEG2-C4-Cl contains (S,R,S)-AHPC-based VHL ligand and alkyl/ether linker. (S,R,S)-AHPC-PEG2-C4-Cl can induce the degradation of GFP-HaloTag7.

Physicochemical Properties

Molecular Formula	C32H47CLN4O6S
Molecular Weight	651.256786584854
Exact Mass	650.29
CAS #	1835705-57-1
PubChem CID	129072774
Appearance	Light yellow to yellow ointment
LogP	4.1
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	18
Heavy Atom Count	44
Complexity	901
Defined Atom Stereocenter Count	3
SMILES	CC1=C(SC=N1)C2=CC=C(C=C2)CNC(=O)[C@@H]3C[C@H](CN3C(=O)[C@H](C(C)(C)C)NC(=O)COCCOCCCCCCCl)O
InChi Key	VVGFRQKHZOZAAG-UWPQIUOOSA-N
InChi Code	InChI=1S/C32H47ClN4O6S/c1-22-28(44-21-35-22)24-11-9-23(10-12-24)18-34-30(40)26-17-25(38)19-37(26)31(41)29(32(2,3)4)36-27(39)20-43-16-15-42-14-8-6-5-7-13-33/h9-12,21,25-26,29,38H,5-8,13-20H2,1-4H3,(H,34,40)(H,36,39)/t25-,26+,29-/m1/s1

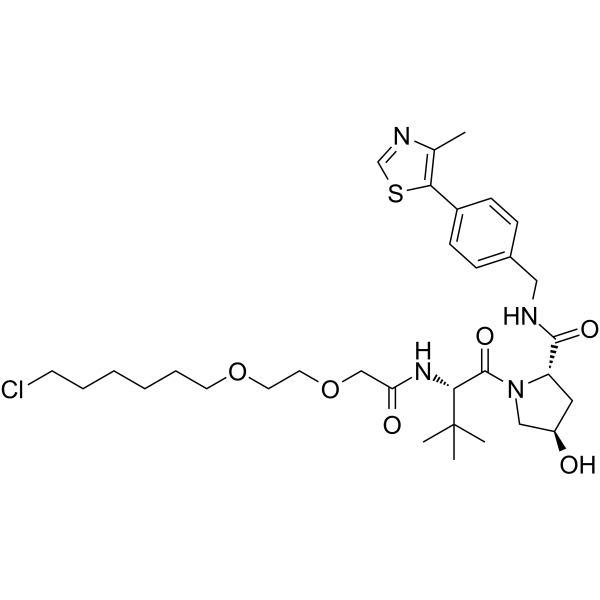

Chemical Name	(2S,4R)-1-[(2S)-2-[[2-[2-(6-chlorohexoxy)ethoxy]acetyl]amino]-3,3-dimethylbutanoyl]-4-hydroxy-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]pyrrolidine-2-carboxamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

ln Vitro

(S,R,S)-AHPC-PEG2-C4-Cl employs the VHL ligand [1]. The linkers comprise a combination of hydrophobic and hydrophilic moieties that balance the hydrophobicity/hydrophilicity of the resulting hybrid molecules. PROTACs that cause the degradation of BCR-ABL, an oncogenic tyrosine kinase, have been created. (S,R,S)-AHPC-PEG2-C4-Cl can be linked to potent TKIs (bosutinib and dasatinib) that degrade c-ABL and BCR-ABL by hijacking either the CRBN or VHL E3 ubiquitin ligase[2].

References

[1]. Proteolysis Targeting Chimera Compounds and Methods of Preparing and Using Same. US20170121321A1. [2]. Modular PROTAC Design for the Degradation of Oncogenic BCR-ABL. Angew Chem Int Ed Engl. 2016 Jan 11;55(2):807-10.

Solubility Data

Solubility (In Vitro)

H2O : ~50 mg/mL (~76.77 mM) DMSO : ≥ 50 mg/mL (~76.77 mM) Ethanol : ~50 mg/mL (~76.77 mM)

Solubility (In Vivo)

Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.5355 mL	7.6774 mL	15.3549 mL
	5 mM	0.3071 mL	1.5355 mL	3.0710 mL
	10 mM	0.1535 mL	0.7677 mL	1.5355 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
