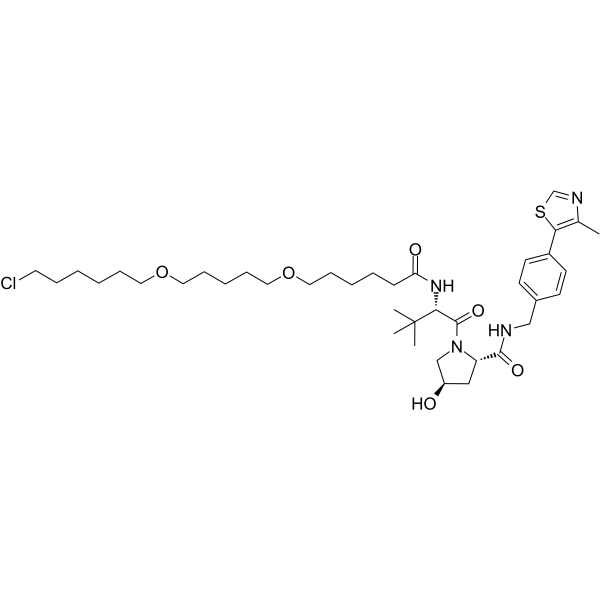

(S,R,S)-AHPC-(C3-PEG)2-C6-Cl is a small molecule HaloPROTAC containing (S,R,S)-AHPC-based VHL ligand and 2-unit PEG linker. (S,R,S)-AHPC-(C3-PEG)2-C6-Cl can induce the degradation of GFP-HaloTag7.

Physicochemical Properties

Molecular Formula	C39H61CLN4O6S
Molecular Weight	749.442848920822
Exact Mass	748.4
CAS #	1835705-61-7
PubChem CID	129072768
Appearance	Off-white to yellow solid powder
LogP	6.1
Hydrogen Bond Donor Count	3
Hydrogen Bond Acceptor Count	8
Rotatable Bond Count	25
Heavy Atom Count	51
Complexity	1010
Defined Atom Stereocenter Count	3
SMILES	ClCCCCCCOCCCCCOCCCCCC(N[C@H](C(N1C[C@@H](C[C@H]1C(NCC1C=CC(C2=C(C)N=CS2)=CC=1)=O)O)=O)C(C)(C)C)=O
InChi Key	DVLICOWBWULAJJ-RWTOGVPBSA-N
InChi Code	InChI=1S/C39H61ClN4O6S/c1-29-35(51-28-42-29)31-18-16-30(17-19-31)26-41-37(47)33-25-32(45)27-44(33)38(48)36(39(2,3)4)43-34(46)15-9-7-12-22-50-24-14-8-13-23-49-21-11-6-5-10-20-40/h16-19,28,32-33,36,45H,5-15,20-27H2,1-4H3,(H,41,47)(H,43,46)/t32-,33+,36-/m1/s1
Chemical Name	(2S,4R)-1-[(2S)-2-[6-[5-(6-chlorohexoxy)pentoxy]hexanoylamino]-3,3-dimethylbutanoyl]-4-hydroxy-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]pyrrolidine-2-carboxamide
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

[1]. Modular PROTAC Design for the Degradation of Oncogenic BCR-ABL. Angew Chem Int Ed Engl. 2016 Jan 11; 55(2): 807–810.

Solubility Data

Solubility (In Vitro)

DMSO : ~200 mg/mL (~266.87 mM) Ethanol : ~100 mg/mL (~133.43 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (3.34 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.5 mg/mL (3.34 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (3.34 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.3343 mL	6.6716 mL	13.3433 mL
	5 mM	0.2669 mL	1.3343 mL	2.6687 mL
	10 mM	0.1334 mL	0.6672 mL	1.3343 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
