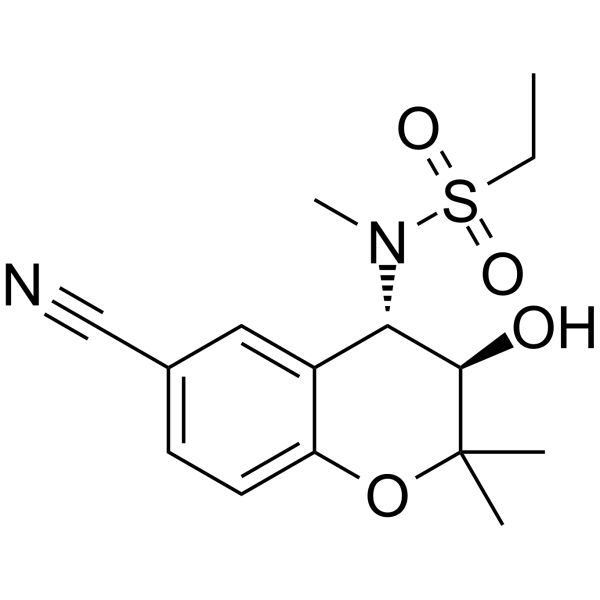

-Chromanol 293B Chemical Structure.png)
Physicochemical Properties
| Molecular Formula | C15H20N2O4S |
| Molecular Weight | 324.40 |
| Exact Mass | 324.114 |
| Elemental Analysis | C, 55.54; H, 6.21; N, 8.64; O, 19.73; S, 9.88 |
| CAS # | 163163-24-4 |
| Related CAS # | Chromanol 293B;163163-23-3 |
| PubChem CID | 121846 |
| Appearance | Typically exists as solid at room temperature |
| Density | 1.33g/cm3 |
| Boiling Point | 474.1ºC at 760mmHg |
| Flash Point | 240.6ºC |
| LogP | 2.493 |
| Hydrogen Bond Donor Count | 1 |
| Hydrogen Bond Acceptor Count | 6 |
| Rotatable Bond Count | 3 |
| Heavy Atom Count | 22 |
| Complexity | 560 |
| Defined Atom Stereocenter Count | 2 |
| SMILES | C(C1=CC2C(N(C)S(CC)(=O)=O)C(O)C(C)(C)OC=2C=C1)#N |
| InChi Key | HVSJHHXUORMCGK-UONOGXRCSA-N |
| InChi Code | InChI=1S/C15H20N2O4S/c1-5-22(19,20)17(4)13-11-8-10(9-16)6-7-12(11)21-15(2,3)14(13)18/h6-8,13-14,18H,5H2,1-4H3/t13-,14+/m0/s1 |
| Chemical Name | N-[(3R,4S)-6-cyano-3-hydroxy-2,2-dimethyl-3,4-dihydrochromen-4-yl]-N-methylethanesulfonamide |
| Synonyms | Chromanol 293B; 163163-23-3; (-)-[3R,4S]-Chromanol 293B; 293B Cpd; (-)-Chromanol 293B; 163163-24-4; (3R,4S)-293B; LS-185874; |
| HS Tariff Code | 2934.99.9001 |
| Storage |
Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
| Shipping Condition | Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs) |
Biological Activity
| Targets | IKs[1] |
| ln Vitro | (-)-Chromanol 293B inhibits the KvLQT11+minK ion channel complex in a specific manner[1]. |
| Enzyme Assay | Selective inhibitors of the slow component of the cardiac delayed rectifier K(+) current, I(Ks), are of interest as novel class III antiarrhythmic agents and as tools for studying the physiologic roles of the I(Ks) current. Racemic chromanol 293B is an inhibitor of both native I(Ks) and its putative molecular counterpart, the KvLQT1+minK ion channel complex. We synthesized the (+)-[3S,4R] and (-)-[3R,4S] enantiomers of chromanol 293B using chiral intermediates of known absolute configuration and determined their relative potency to block recombinant human K(+) channels that form the basis for the major repolarizing K(+) currents in human heart, including KvLQT1+minK, human ether-a-go-go-related gene product (hERG), Kv1.5, and Kv4.3, corresponding to the slow (I(Ks)), rapid (I(Kr)), and ultrarapid (I(Kur)) delayed rectifier currents and the transient outward current (I(To)), respectively. K(+) channels were expressed in mammalian cells and currents were recorded using the whole-cell patch-clamp technique. We found that the physicochemical properties and relative potency of the enantiomers differed from those reported previously, with (-)-[3R,4S]293B nearly 7-fold more potent in block of KvLQT1+minK than (+)-[3S,4R]293B, indicating that the original stereochemical assignments were reversed. K(+) current inhibition by (-)-293B was selective for KvLQT1+minK over hERG, whereas the stereospecificity of block for KvLQT1+minK and Kv1.5 was preserved, with (-)-293B more potent than (+)-293B for both channel complexes. We conclude that the (-)-[3R,4S] enantiomer of chromanol 293B is a selective inhibitor of KvLQT1+minK and therefore a useful tool for studying I(Ks)[1]. |
| References | [1]. Yang IC, et al. Stereoselective interactions of the enantiomers of chromanol 293B with human voltage-gated potassium channels. J Pharmacol Exp Ther. 2000;294(3):955-962. |
| Additional Infomation | Chromanol 293B is a 1-benzopyran. |
Solubility Data
| Solubility (In Vitro) | May dissolve in DMSO (in most cases), if not, try other solvents such as H2O, Ethanol, or DMF with a minute amount of products to avoid loss of samples |
| Solubility (In Vivo) |
Note: Listed below are some common formulations that may be used to formulate products with low water solubility (e.g. < 1 mg/mL), you may test these formulations using a minute amount of products to avoid loss of samples. Injection Formulations (e.g. IP/IV/IM/SC) Injection Formulation 1: DMSO : Tween 80： Saline = 10 : 5 : 85 (i.e. 100 μL DMSO stock solution → 50 μL Tween 80 → 850 μL Saline) *Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH ₂ O to obtain a clear solution. Injection Formulation 2: DMSO : PEG300 ：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL DMSO → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Injection Formulation 3: DMSO : Corn oil = 10 : 90 (i.e. 100 μL DMSO → 900 μL Corn oil) Example: Take the Injection Formulation 3 (DMSO : Corn oil = 10 : 90) as an example, if 1 mL of 2.5 mg/mL working solution is to be prepared, you can take 100 μL 25 mg/mL DMSO stock solution and add to 900 μL corn oil, mix well to obtain a clear or suspension solution (2.5 mg/mL, ready for use in animals). Injection Formulation 4: DMSO : 20% SBE-β-CD in saline = 10 : 90 [i.e. 100 μL DMSO → 900 μL (20% SBE-β-CD in saline)] *Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Injection Formulation 5: 2-Hydroxypropyl-β-cyclodextrin : Saline = 50 : 50 (i.e. 500 μL 2-Hydroxypropyl-β-cyclodextrin → 500 μL Saline) Injection Formulation 6: DMSO : PEG300 : castor oil : Saline = 5 : 10 : 20 : 65 (i.e. 50 μL DMSO → 100 μLPEG300 → 200 μL castor oil → 650 μL Saline) Injection Formulation 7: Ethanol : Cremophor : Saline = 10： 10 : 80 (i.e. 100 μL Ethanol → 100 μL Cremophor → 800 μL Saline) Injection Formulation 8: Dissolve in Cremophor/Ethanol (50 : 50), then diluted by Saline Injection Formulation 9: EtOH : Corn oil = 10 : 90 (i.e. 100 μL EtOH → 900 μL Corn oil) Injection Formulation 10: EtOH : PEG300：Tween 80 : Saline = 10 : 40 : 5 : 45 (i.e. 100 μL EtOH → 400 μLPEG300 → 50 μL Tween 80 → 450 μL Saline) Oral Formulations Oral Formulation 1: Suspend in 0.5% CMC Na (carboxymethylcellulose sodium) Oral Formulation 2: Suspend in 0.5% Carboxymethyl cellulose Example: Take the Oral Formulation 1 (Suspend in 0.5% CMC Na) as an example, if 100 mL of 2.5 mg/mL working solution is to be prepared, you can first prepare 0.5% CMC Na solution by measuring 0.5 g CMC Na and dissolve it in 100 mL ddH2O to obtain a clear solution; then add 250 mg of the product to 100 mL 0.5% CMC Na solution, to make the suspension solution (2.5 mg/mL, ready for use in animals). Oral Formulation 3: Dissolved in PEG400 Oral Formulation 4: Suspend in 0.2% Carboxymethyl cellulose Oral Formulation 5: Dissolve in 0.25% Tween 80 and 0.5% Carboxymethyl cellulose Oral Formulation 6: Mixing with food powders Note: Please be aware that the above formulations are for reference only. InvivoChem strongly recommends customers to read literature methods/protocols carefully before determining which formulation you should use for in vivo studies, as different compounds have different solubility properties and have to be formulated differently. (Please use freshly prepared in vivo formulations for optimal results.) |
| Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
| 1 mM | 3.0826 mL | 15.4131 mL | 30.8261 mL | |
| 5 mM | 0.6165 mL | 3.0826 mL | 6.1652 mL | |
| 10 mM | 0.3083 mL | 1.5413 mL | 3.0826 mL |
