Genevant CL1 is an ionizable cationic lipid (lipid 10, pKa=6.3) that can be used for mRNA lipid nanoparticle (LNP) vaccine delivery [1][2].

Physicochemical Properties

Molecular Formula	C39H73NO2
Molecular Weight	588.00
Exact Mass	587.564
CAS #	1450888-71-7
Related CAS #	Genevant CL1 monohydrochloride
PubChem CID	89775021
Appearance	Colorless to light yellow liquid
LogP	13.8
Hydrogen Bond Donor Count	0
Hydrogen Bond Acceptor Count	3
Rotatable Bond Count	32
Heavy Atom Count	42
Complexity	625
Defined Atom Stereocenter Count	0
SMILES	CCCCC/C=C\CCCC(C(OC(=O)CCCCN(C)C)CCC/C=C\CCCCC)CCC/C=C\CCCCC
InChi Key	ARJCMRWHZPDQJG-ASSJVFBPSA-N
InChi Code	InChI=1S/C39H73NO2/c1-6-9-12-15-18-21-24-27-32-37(33-28-25-22-19-16-13-10-7-2)38(34-29-26-23-20-17-14-11-8-3)42-39(41)35-30-31-36-40(4)5/h18-23,37-38H,6-17,24-36H2,1-5H3/b21-18-,22-19-,23-20-

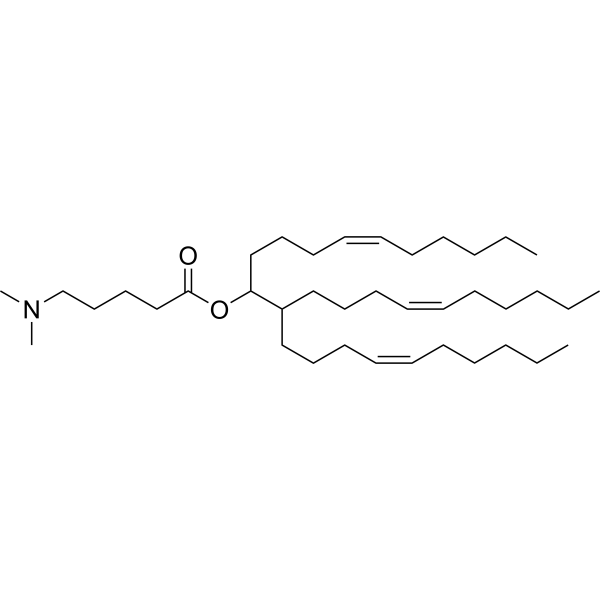

Chemical Name	[(6Z,16Z)-12-[(Z)-dec-4-enyl]docosa-6,16-dien-11-yl] 5-(dimethylamino)pentanoate
Synonyms	GENEVANT CL1
HS Tariff Code	2934.99.9001
Storage	Powder-20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month
Shipping Condition	Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)

Biological Activity

References

Michael D Buschmann, et al. Nanomaterial Delivery Systems for mRNA Vaccines. Vaccines (Basel). 2021 Jan 19;9(1):65.

Solubility Data

Solubility (In Vitro)

DMSO : ~100 mg/mL (~170.07 mM)

Solubility (In Vivo)

Solubility in Formulation 1: ≥ 2.5 mg/mL (4.25 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: 2.5 mg/mL (4.25 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C，1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. Solubility in Formulation 3: ≥ 2.5 mg/mL (4.25 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.  (Please use freshly prepared in vivo formulations for optimal results.)

Preparing Stock Solutions		1 mg	5 mg	10 mg
	1 mM	1.7007 mL	8.5034 mL	17.0068 mL
	5 mM	0.3401 mL	1.7007 mL	3.4014 mL
	10 mM	0.1701 mL	0.8503 mL	1.7007 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
